Drawing shapes

STEP 1 : Setting Up

Install Visual Studio 2019 with tools and feautures of C#.
Create a new project and select project template as WPF App(.Net Framework)
Enter a name for application and create
Go to Project >> Add References >> Search: System Drawing ; Install System Drawing.
Go to Tools >> NuGet Package Manager >> Manage Packages... >>Search for toolkit ; install Extended WPF Toolkit.

STEP 2 : MainWindow.xaml In this we make layout for elements and identufy all the window elements ( radiobutton , textbox etc) we need in our app and location where to place them. As we have to make an app for drawing shapes (triangle, rectangle, circle) with custom parameters.

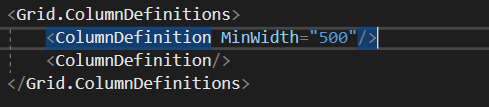

I used two column grid 1:1 in ratio . First column consist of radiobuttons , labels and textboxes and second half is for drawing shape.

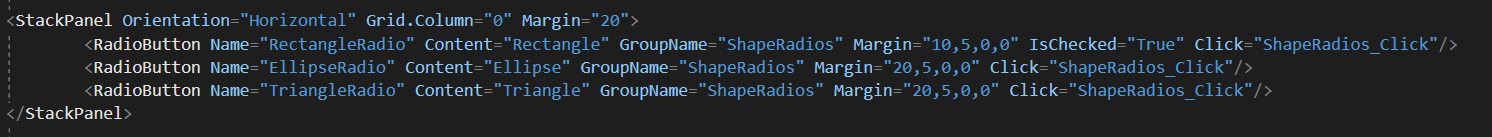

Make three radiobuttons and name them as ellipse , rectangle , triangle when will click on any radiobutton some function gets execute to set their visibility
Make two textboxes labeled with height and width to get parameters for height, width of the choosen shape.

STEP 3: MainWindow.xaml.cs

Create a function ShapeRadios_Click which will execute when will click on any radiobutton , It sets visibility of current selected shape and collapse others.

private void ShapeRadios_Click(object sender, RoutedEventArgs e)
        {
            RectangleShape.Visibility = Visibility.Collapsed;
            EllipseShape.Visibility = Visibility.Collapsed;
            TriangleShape.Visibility = Visibility.Collapsed;

            switch (((RadioButton)sender).Name)
            {
                case "RectangleRadio":
                    RectangleShape.Visibility = Visibility.Visible;
                    CurrentShape = "Rectangle";
                    break;
                case "EllipseRadio":
                    EllipseShape.Visibility = Visibility.Visible;
                    CurrentShape = "Ellipse";
                    break;
                case "TriangleRadio":
                    TriangleShape.Visibility = Visibility.Visible;
                    CurrentShape = "Triangle";
                    break;
                default:
                    break;
            }
        }

Create a function which will render when we will fill width box. This function sets width of shapes

private void WidthBox_SelectionChanged(object sender, RoutedEventArgs e)
        {
            double.TryParse(WidthBox.Text, out width);
            RectangleShape.Width = width;
            EllipseShape.Width = width;

            //        100,0
            //          △
            //   0,200     200,200
            PointCollection newpoints = new PointCollection();

            newpoints.Add(new System.Windows.Point(0, 0));
            newpoints.Add(new System.Windows.Point(width/2,height));
            newpoints.Add(new System.Windows.Point(width, 0));
            TriangleShape.Points = newpoints;
        }

Create a function which will render when we will fill height box. This function sets height of shapes

private void HeightBox_SelectionChanged(object sender, RoutedEventArgs e)
        {
            double.TryParse(HeightBox.Text, out height);
            RectangleShape.Height = height;
            EllipseShape.Height = height;


            PointCollection newpoints = new PointCollection();


            newpoints.Add(new System.Windows.Point(0, 0));
            newpoints.Add(new System.Windows.Point(width / 2, height));
            newpoints.Add(new System.Windows.Point(width, 0));
            TriangleShape.Points = newpoints;
        }

STEP 4: Testing

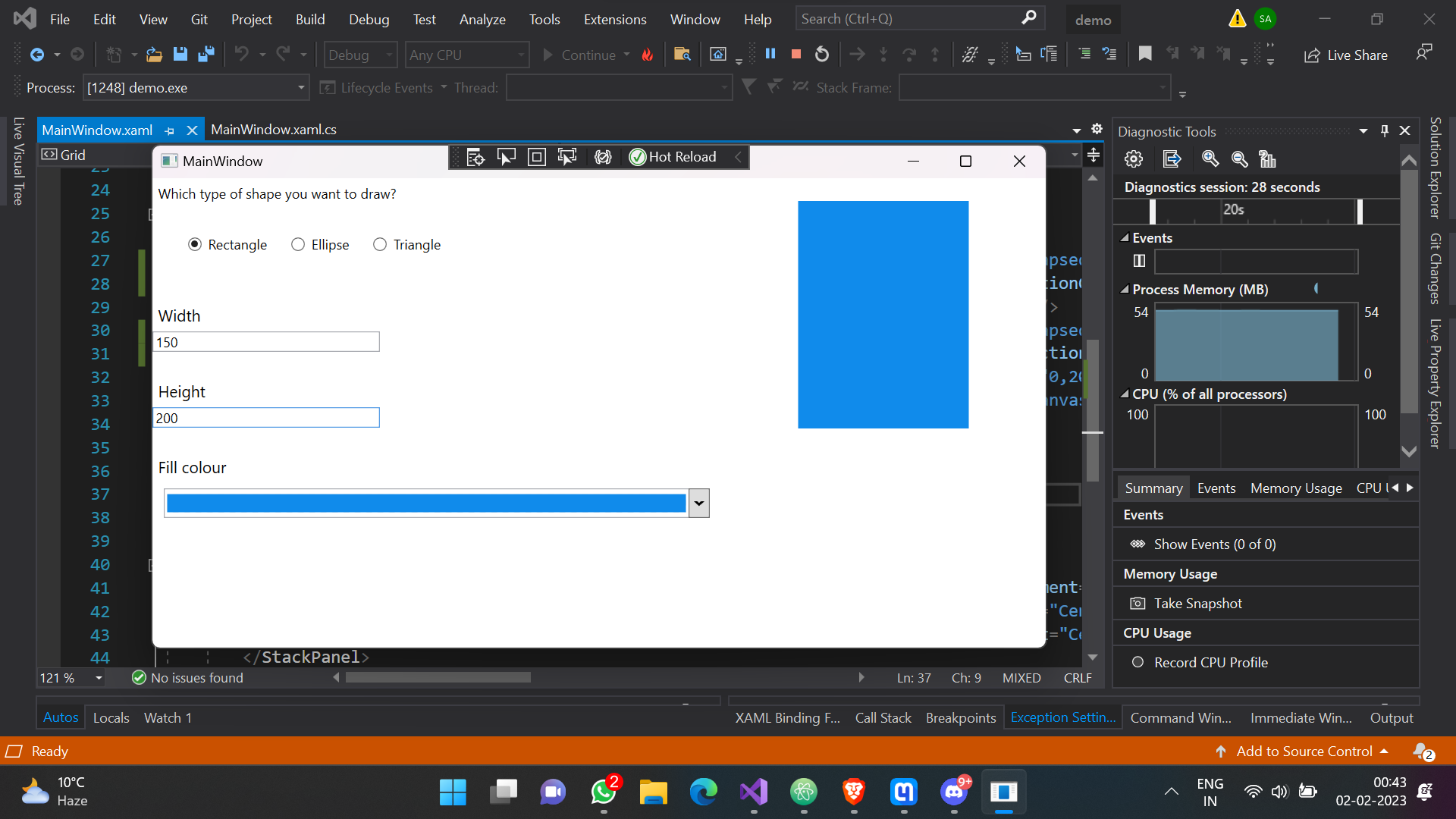

Creating rectangle for custom inputs.

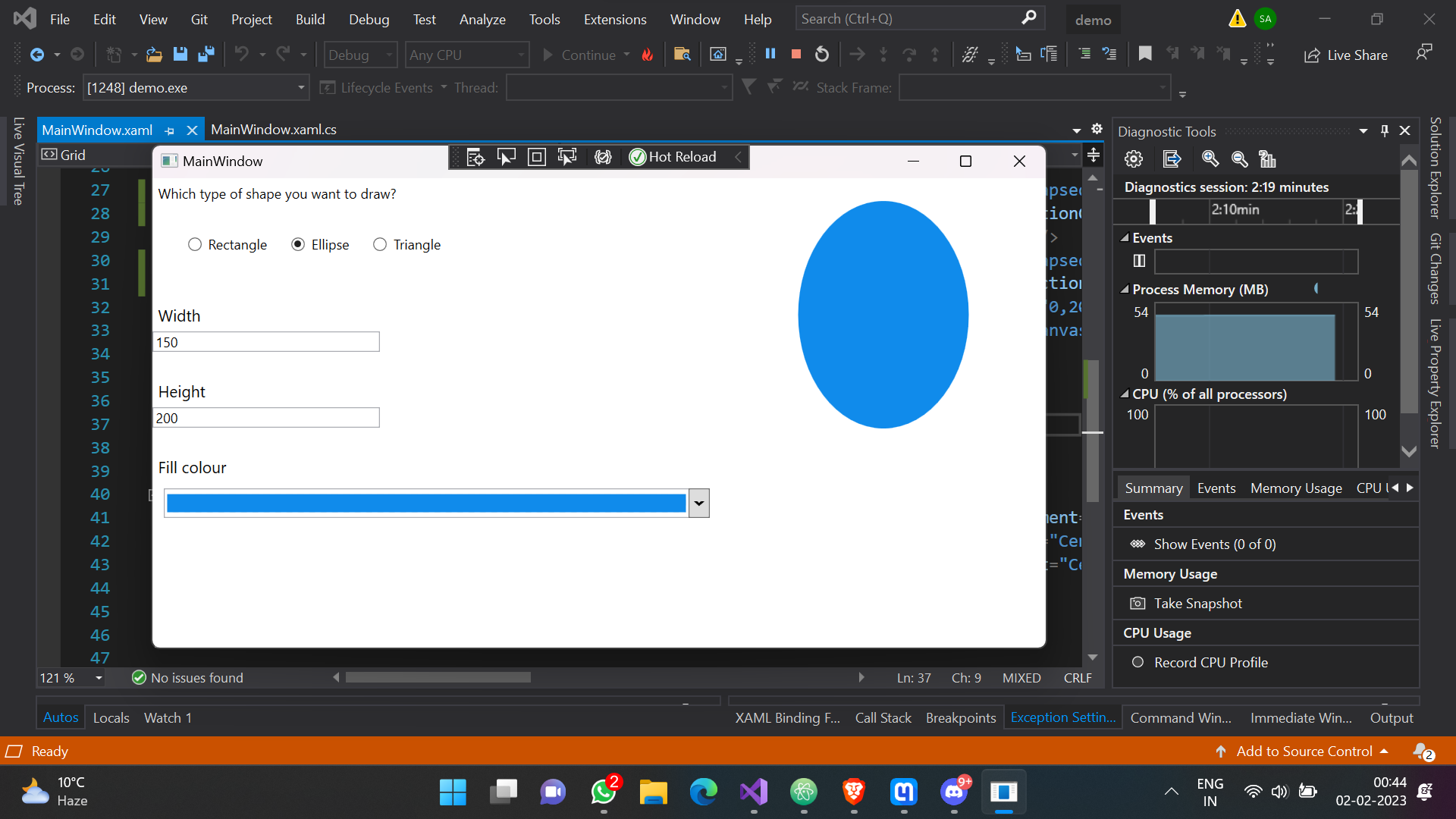

Creating ellipse for custom inputs
